In a pharmaceutical cleanroom, the HVAC system is not a comfort service it is the product's protection. It holds the pressure cascade, delivers the air changes and drives the HEPA filtration that keep particles and microbes out, and when any one of those drifts, the room silently falls out of its classification and the batch is at risk. The OXMAINT AI — the AI-powered maintenance management software — monitors those parameters, raises the alert and the work order on a drift, and keeps the records a requalification depends on.
Pharmaceutical · Cleanroom HVAC · Preventive Maintenance · GMP Compliance · 2026

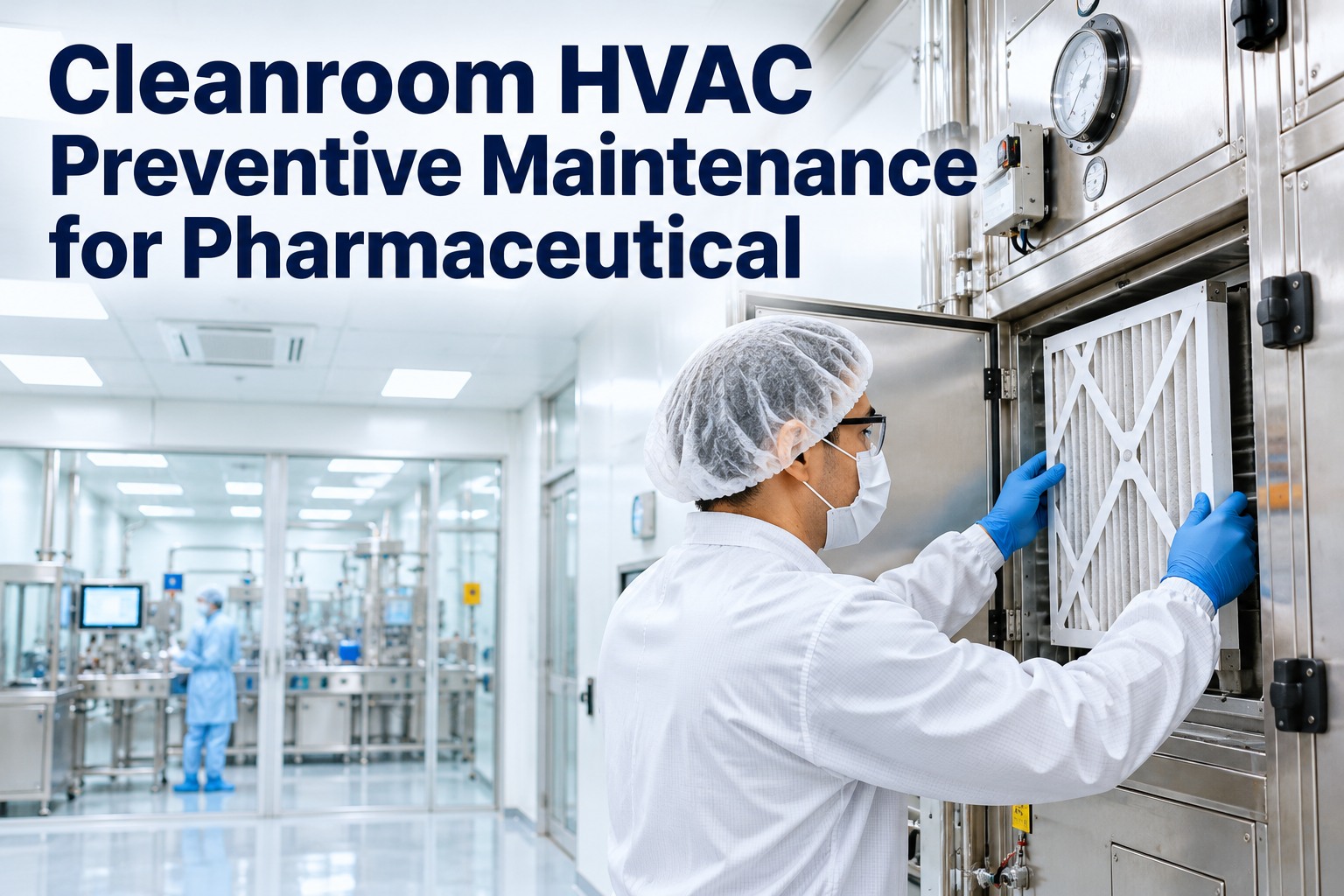

Cleanroom HVAC Preventive Maintenance for Pharmaceutical
Differential pressure, air changes, HEPA integrity, temperature and humidity each have to stay inside a tight band — and a slow drift is harder to catch than an outright failure. OXMAINT AI runs the preventive-maintenance schedule, watches the parameters and turns a drift into a work order before the room loses its grade.
1Monitor
→
2Alert on drift
→
3Raise work order
→
4Restore & record
HVAC = control
The air system is the primary contamination barrier
ISO 14644 · Annex 1
Classification and GMP ride on the parameters staying in band
Drift, not failure
The risk is the slow slide no one notices until a result does
Requal-ready
PM history kept the way a requalification expects it
Why Cleanroom HVAC Cannot Be Left to Drift
A cleanroom holds its classification only while every air parameter stays inside its range — and the dangerous failures are rarely dramatic. A filter loading up, a damper creeping, a sensor reading high: none trips an alarm, yet each pulls the room toward the edge of its grade. That is why preventive maintenance, not reaction, is the only safe footing; start free and keep every cleanroom parameter on a managed PM program in OXMAINT AI.
It holds the cascade
The pressure difference between grades keeps air flowing the right way — lose it and contamination moves in.
It sweeps the air
The air-change rate clears particles continuously — too few changes and recovery after a disturbance stalls.
It is the barrier
HEPA filtration to H13–H14 is the physical wall against airborne particles and microbes — it cannot be assumed.
Failure is silent
A drift out of band rarely announces itself — by the time a QC result flags it, the batch is already exposed.
The Parameters a Cleanroom Lives By
Six controlled parameters define whether a room is in its grade or out of it — and each one has a target to hold and a consequence if it slips. These are what a preventive program and continuous monitoring exist to protect; book a demo to see live parameter monitoring and alerts in OXMAINT AI.
Differential pressure
Typical ~10–15 Pa cascade
Keeps air moving from clean to less-clean. Lose it and contamination flows the wrong way.
Air changes per hour
Grade-dependent, tens of ACH
Sweeps particles out continuously. Too few and the room recovers slowly after activity.
HEPA filtration
H13–H14 · ≥99.95%
The barrier itself. A breach or loaded filter lets particles and microbes through.
Temperature
Typically ~20–22 °C
Protects product stability and gowning comfort, and guards against condensation.
Relative humidity
Often 30–60% RH
Controls static, microbial growth and moisture-sensitive product and powder handling.
Recovery time
Per ISO 14644-3
How fast the room returns to class after a disturbance — a direct read on HVAC health.
The HVAC Components That Need the Care
Those parameters hold only while the air-handling hardware behind them is maintained — the filters, coils, fans and controls that actually move and clean the air. Each is a preventive-maintenance line item in its own right; start free and hold a PM history for every HVAC component in OXMAINT AI.
Pre-filters
Protect the HEPA stage and the coils; changed on a short cycle to preserve airflow.
HEPA / final filters
The barrier filters; integrity tested and changed on pressure differential and results.
Coils
Heating and cooling coils kept clean so temperature and humidity hold steady.
Fans & drive belts
Move the air volume; belt wear and fan condition quietly erode the air-change rate.
Dampers & actuators
Set the balance and the cascade; a creeping damper shifts the whole pressure picture.
Sensors & controls
The eyes of the system; a drifting sensor hides a real problem or invents a false one.
The Preventive Maintenance Schedule
A cleanroom PM program runs on frequency — each task on its own interval, each with a record a requalification will call for. Frequencies below are typical; confirm each against your validated schedule and the applicable standard; book a demo to see the PM schedule built against your cleanrooms in OXMAINT AI.
PM task
What it protects
Typical frequency
Record kept
Differential-pressure check
The pressure cascade
Continuous / daily
Pressure log
Pre-filter change
Airflow & HEPA life
Monthly–Quarterly
Filter change record
HEPA integrity test
The filtration barrier
Annual / scheduled
PAO test certificate
Airflow & ACH verification
The air-change rate
Scheduled
Velocity / ACH report
AHU service (coils, belts, fans)
System health
Quarterly–Annual
Service record
Sensor calibration
Trustworthy readings
Periodic
Calibration certificate
Recovery-time test
Return to class
Per requalification
Recovery report
Requalification
The classification
Per ISO 14644-2
Qualification report
PM Is a Pillar of the Contamination Control Strategy
Under EU GMP Annex 1, a site has to hold a documented Contamination Control Strategy — and a maintained HVAC system is one of its load-bearing elements. Preventive maintenance is not separate from compliance; it is part of the evidence that control is real; book a demo to see HVAC PM feed your contamination control evidence in OXMAINT AI.
Annex 1 (2022)
Requires a holistic Contamination Control Strategy across the facility and its systems.
HVAC as a control
Air handling is a primary engineering control — its upkeep is part of the strategy.
Requalification
Rooms are requalified on a cycle per ISO 14644-2, built on the PM and test record.
Evidence trail
Every PM, filter change and test becomes proof the control held between checks.
The Room Does Not Warn You It Is Slipping. Your Maintenance System Should.
A loaded filter, a drifting sensor, a damper out of balance — each pulls the room toward the edge of its grade without a sound. The OXMAINT AI maintenance management software watches the parameters, schedules every PM task and raises the work order on a drift, so a cleanroom stays in classification instead of falling out of it quietly.
How OXMAINT AI Manages Cleanroom HVAC PM
A preventive program holds only when the parameters are watched, the tasks are scheduled and the record is complete — and that is the job the software does. Here is what the OXMAINT AI maintenance management software brings to cleanroom HVAC maintenance; start free and run your cleanroom PM program in OXMAINT AI.
Parameter monitoring & alerts
Pressure, airflow, temperature and humidity watched against band, with an alert the moment one drifts.
PM scheduling by frequency
Every task set to its interval — daily checks to requalification — so nothing falls off the calendar.
Filter & AHU asset register
Every HEPA stage, pre-filter and air handler held as an asset with its own change and test history.
Work orders with readings
Each PM raised as a work order with the reading or test result captured against the asset.
Deviation & corrective action
A drift or failed test becomes a tracked deviation followed through to verified closure.
Requalification-ready records
Every PM, filter change and test kept and searchable, so the requalification evidence is ready.
Frequently Asked Questions
What does cleanroom HVAC control?
Differential pressure, air changes per hour, HEPA filtration, temperature and humidity. Together they keep the room within its ISO 14644 class and GMP grade, and each has to stay inside a defined band.
Which standards govern pharmaceutical cleanroom HVAC?
ISO 14644 for classification and testing, EU GMP Annex 1 (revised 2022) for sterile manufacture, and FDA cGMP under 21 CFR Parts 210 and 211 for pharmaceutical production in the United States.
How often are HEPA filters tested and changed?
HEPA integrity is tested on a set schedule — commonly annually — while pre-filters are changed far more often. Final filters are changed based on pressure differential and test results rather than a fixed date.
What happens if a parameter drifts out of range?
The room can fall out of its classification, putting any batch exposed to it at risk. The drift has to be caught, corrected and documented, and it often triggers a deviation and investigation.
How does a CMMS help with cleanroom HVAC maintenance?
Keep Every Cleanroom in Its Grade — Before a Result Tells You It Slipped.
Run cleanroom HVAC maintenance inside the OXMAINT AI maintenance management software — parameter monitoring and drift alerts, PM scheduling by frequency, a filter and AHU asset register, work orders with readings, deviation tracking and requalification-ready records — so pressure, airflow and filtration stay in band and the evidence is always to hand.
