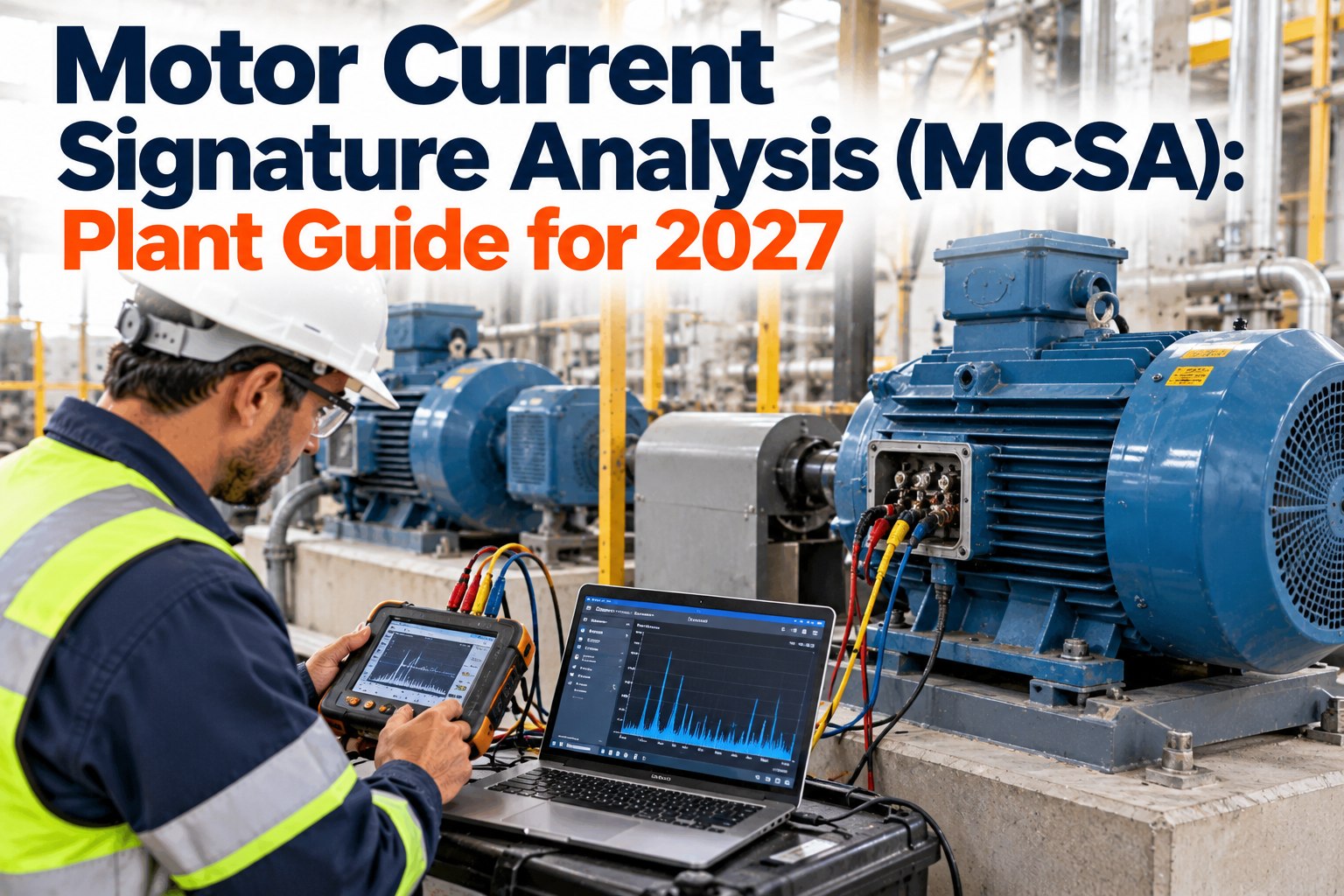

Motor Current Signature Analysis (MCSA): Plant Guide for 2027
Some motor faults are hard to find from the outside. A rotor bar cracks inside the cage, the air gap shifts a little, a load starts to hunt, and the casing vibration looks acceptable for months. But the motor is a sensor of its own health: any asymmetry in the rotor or the load shows up in the current it draws. Motor current signature analysis (MCSA) reads that current from a clamp at the motor control center, with no disassembly and often with the motor still running. The hard part isn't the test. It's making sure a finding becomes a job that gets done. OxMaint AI maintenance management software links the test result to the motor, raises an issue when it drifts and tracks the work order through to repair.
Motor Current Signature Analysis (MCSA): Plant Guide for 2027
Rotor bar cracks, eccentricity and load problems are often clearer in the current than in the casing vibration. This guide covers how MCSA works, how to measure it, how to read the result and what equipment to look for. OxMaint AI connects the same chain in one CMMS: scheduled test, flagged reading, assigned work order and a PM plan that learns from the history.
The current spectrum has a tall peak at line frequency. A healthy motor has little else around it. Rotor faults add small peaks (sidebands) on either side, at f(1 ± 2s), where f is line frequency and s is slip. Book a demo to see motor results trended.
Illustrative example: 4-pole motor, 50 Hz supply, slip 2% → sidebands at 48 Hz and 52 Hz.
Sidebands at f(1 ± 2s). Clearest under steady load.
🎯
Air-gap eccentricity
Peaks spaced from f by rotor speed and its harmonics.
⚖️
Load & mechanical faults
Misalignment, looseness, gearbox or load oscillation show up as modulation of the current.
⚡
Supply & stator issues
Voltage or current imbalance and winding problems affect the harmonic content.
How to Measure Motor Current for MCSA
1
Pick the motor
Choose an induction motor running under steady load, ideally above about half load.
2
Clamp one phase
Use a current clamp or CT at the MCC. Follow electrical safety and arc-flash rules.
3
Record nameplate & speed
Capture rated speed, poles and actual load so slip can be calculated.
4
Capture the spectrum
Use enough resolution to separate the sidebands from the line peak.
5
Compare & log
Compare to baseline and past tests, then record the result against the asset.
Note: electrical work at the MCC should be done by qualified personnel following your site's lockout, PPE and arc-flash procedures.
Reading Severity: The dB Ruler
Severity comes from how far below the line peak the sideband sits. Bands vary by tool and vendor, and bar count doesn't scale neatly with amplitude, so treat these as a rule of thumb and trend each motor against its own baseline. Book a demo to set alert levels per motor.
≈ 50 dB or more below
Healthy
Continue normal monitoring.
≈ 45 dB below
Watch
Possible developing problem. Retest sooner and trend.
≈ 35–40 dB below
Act
Likely serious rotor fault. Confirm and plan repair.
A Finding Is Only Worth What Happens Next.
A great spectrum in a report folder doesn't repair a rotor. OxMaint AI keeps each motor's test history, raises an issue when a reading moves toward the action band, assigns the work order and records the outcome, so the next test is read with the full story.
There isn't one best MCSA tool for every plant. Match features to your use: portable route testing or permanent online monitoring. Start free and keep results in your CMMS.
☑ High spectral resolution to separate close sidebands
☑ Clamp or CT compatible with your motor current range
☑ Automatic fault flags plus access to the raw spectrum
☑ Trending and baseline comparison per motor
☑ Safe for MCC use, with sensible rating and insulation
☑ Easy export so results link to the work order record
From Test Result to Work Order
Healthy
Log the result. Keep the monitoring interval.
Watch
Shorten the retest interval. Add vibration and thermal checks.
Act
Raise an issue, confirm, assign a work order and plan the repair or replacement.
How OxMaint AI Supports Motor Condition Monitoring
Motor Asset Register
Nameplate data, location and history for every motor.
Scheduled Test Routes
Recurring MCSA rounds generated on a schedule.
Issue to Work Order
A worsening reading becomes an assigned, tracked job.
Inspection Records
Capture results and notes against each asset.
Spare Parts Link
Spare motors and rewinds tied to the equipment.
Repair History
See what happened after each finding to refine limits.
Frequently Asked Questions
What is motor current signature analysis?
A condition-monitoring method that studies the frequency spectrum of a motor's current to find electrical and mechanical faults.
How do I check motor current for MCSA?
Clamp one phase at the MCC with a suitable clamp or CT while the motor runs under steady load, then capture the spectrum. Use safe procedures.
Can MCSA detect broken rotor bars?
Yes. Broken bars create sidebands at f(1 ± 2s) that grow with severity. Confirm with other methods.
Does MCSA replace vibration analysis?
No. They complement each other: MCSA is strong on rotor and electrical faults, vibration on bearings and mechanical faults.
How does a CMMS help with MCSA?
It schedules tests, stores results by motor, raises issues on drift and tracks the repair work order.
Turn Motor Signatures Into Planned Repairs.
The test finds the fault; the work order fixes it. OxMaint AI keeps the schedule, the result and the repair together, so every motor finding ends in action.
