On the control screen, the cycle finished and every phase turned green. In the tank, a partly blocked spray device left a patch of wall untouched, and the conductivity probe that approved the caustic strength had been reading high for weeks. This is the quiet failure mode of clean-in-place systems in beverage plants: the cycle completes, the record looks tidy, and cleaning quality slips below what was validated. Preventing it takes two things working together, a disciplined maintenance program for every pump, valve, sensor and spray device, and cycle records that show real measured values, which is where a maintenance management platform earns its keep.

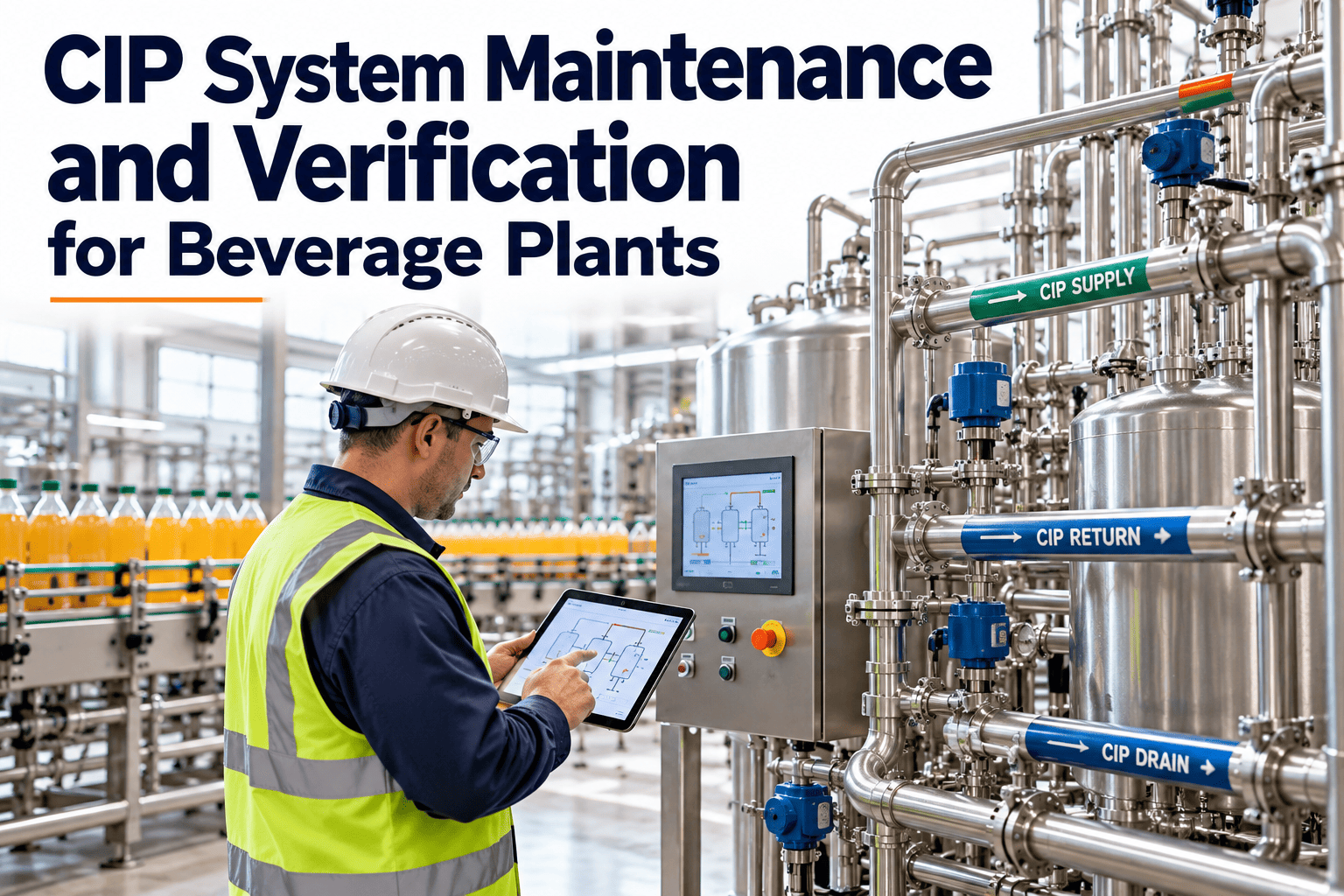

CIP System Maintenance and Verification for Beverage Plants
Maintain the pumps, valves, sensors and spray devices that make a CIP cycle effective, and verify every cycle with recorded parameters instead of a green light on a screen.
Why a Completed Cycle Is Not Always a Clean Cycle
A controller can only act on what its sensors report. When a probe drifts or a pump weakens, the program still advances and the log still closes, so the plant keeps trusting a result that no longer reflects reality.
| What the control screen shows | What may actually be happening | Maintenance condition behind it |
|---|---|---|
| Caustic strength in range | Real concentration is lower than the reading | Conductivity probe fouled or out of calibration, dosing pump under-delivering |
| Temperature setpoint reached | Return temperature never reached the required value | Temperature sensor drift, fouled heat exchanger, steam valve wear |
| Flow established | Velocity too low for mechanical cleaning in some branches | Pump wear, partial blockage, leaking valve diverting flow |
| Cycle time complete | Contact time started before conditions were met | Timer logic tied to a sensor that was not verified |
| Final rinse accepted | Chemical residue remains in dead legs or fittings | Worn seats, poor drainage, rinse sensor placement or drift |
How Each Cleaning Variable Depends on Equipment Condition
Treating time, action, chemistry and temperature as maintenance responsibilities, not only sanitation settings, gives every component a clear reason to be inspected.
Time depends on
- Valve sequencing and actuator response so phases start when intended
- Controller logic that starts timing only once conditions are verified
- Reliable position feedback on routing valves
Action depends on
- Supply and return pump performance against the validated baseline
- Spray balls and rotating devices free of blocked holes
- Clean strainers and unrestricted piping
Chemistry depends on
- Dosing pump output and injection points working as designed
- Conductivity and concentration probes kept clean and calibrated
- Chemical tanks, lines and level devices in good condition
Temperature depends on
- Heat exchanger condition, free of scale and fouling
- Steam or hot water valves that modulate properly
- Temperature sensors verified at the return, not only the supply
Follow the CIP Path and Tag Every Maintainable Point
Walking the solution path from supply to return shows where the cleaning effect can be lost. Each stop in the chain below should exist as an asset with its own tasks and history.
- Solution tanksLevel devices, agitation, tank vents and gaskets
- Supply pumpSeals, bearings, impeller wear, motor load
- Heat exchangerFouling, gaskets, steam or hot water control
- Routing valvesSeat wear, actuators, position feedback
- Cleaned circuitSpray devices, dead legs, fillers and fittings
- Return line and sensorsTemperature, conductivity and flow verification
A Component-Level Maintenance Matrix for CIP Systems
The table lists what to look for and what to do. Set the actual frequencies from equipment manufacturer guidance, your validation study and the failure history you record.
| Component | How it fails | Inspection focus | Maintenance action | Record kept |
|---|---|---|---|---|
| Spray balls and rotating jets | Blocked holes, mineral buildup, damage or loose fit | Spray pattern and coverage, rotation where applicable | Clean, descale, repair or replace | Findings with photo, replacement date |
| Supply and return pumps | Seal leaks, impeller wear, cavitation, reduced output | Flow and pressure against baseline, noise, vibration, seal condition | Seal and bearing replacement, impeller repair | Performance readings and parts used |
| Mix-proof and routing valves | Seat wear, leaking diverts, slow actuators | Leak detection chamber, actuator timing, position feedback | Seat and seal replacement, actuator service | Seal change history by valve |
| Temperature sensors | Drift, damage, poor thermal contact | Comparison with a reference at the return | Calibrate, repair or replace | As-found and as-left results |
| Conductivity and concentration probes | Fouling, coating, drift from chemical exposure | Check against a reference such as titration | Clean, calibrate, replace | Reference comparison and probe changes |
| Flow meters | Scaling, air entrainment, signal drift | Verification against baseline flow | Clean, recalibrate, replace | Verification readings |
| Chemical dosing pumps | Diaphragm wear, blocked injectors, air locks | Output volume and injection point condition | Replace diaphragms and check valves | Dosing verification results |
| Heat exchangers | Fouling, scale, gasket leaks | Temperature and pressure differential | Descale, replace gaskets | Differential readings and cleaning dates |
| Gaskets and O-rings | Compression set, chemical attack, cracking | Visual condition at connections | Scheduled replacement | Replacement by connection |
Turn CIP Component Checks Into Scheduled, Recorded Work
Oxmaint helps beverage maintenance teams organize CIP assets by circuit, schedule inspections and replacements, and capture measured values on mobile devices so evidence builds up as the work is done.
What to Record in Each Phase of a CIP Cycle
Cycle design varies by product and plant, but the principle is the same. Every phase should leave measured values behind, not just a completion flag.
-
1Pre-rinseRecord: rinse duration, flow, and return clarity or conductivity where used.
-
2Detergent washRecord: concentration, return temperature, flow and timed contact once conditions are met.
-
3Intermediate rinseRecord: rinse volume or time and conductivity trending toward the water baseline.
-
4Acid or second washRecord: where used, concentration, temperature, flow and contact time.
-
5Final rinse and sanitizeRecord: rinse endpoint, sanitizer strength and contact conditions as defined by your program.
-
6ReleaseRecord: operator check, any alarm or deviation, and the authorized release to production.
Anatomy of a CIP Verification Record That Holds Up
The strongest records tie measured results to a specific circuit, cycle and set of instruments. A reviewer should be able to confirm that parameters were met without reconstructing the day.
The cycle record should show
- Circuit or line identifier, date, start and end times
- Program version and cleaning agents used
- Measured concentration, temperature, flow and contact time per phase
- Any alarms, interruptions or manual overrides
- Operator and approver for release
The supporting maintenance record should show
- Calibration status of every sensor used in the cycle
- Last inspection of spray devices on that circuit
- Recent pump, valve and dosing verification results
- Open corrective work orders affecting the circuit
- Gasket and seal replacements by connection
From Symptom to Probable Cause: A Practical Guide
When cleaning results disappoint, work from the symptom to the equipment before changing chemistry or extending cycle times, which often masks the real problem.
| Symptom | Equipment causes to check first | First action |
|---|---|---|
| Failed swab or residue in one area | Blocked or misaligned spray device, dead leg, low flow in that branch | Inspect spray coverage and branch flow |
| Detergent use rising without better results | Dosing pump or probe inaccuracy, leaks in the circuit | Verify dosing output and probe against a reference |
| Cycles taking longer to reach temperature | Heat exchanger fouling, steam valve wear, sensor drift | Compare readings with a reference and inspect the exchanger |
| Rinse never reaches its endpoint | Chemical carryover from leaking valves, poor drainage, sensor fouling | Check valve seats and rinse sensor condition |
| Product carryover between circuits | Worn mix-proof valve seals or leak detection faults | Inspect valve seals and leak chambers |
| Frequent seal and gasket failures | Chemical attack, excess temperature, incorrect material | Review material compatibility with the manufacturer |
Beverage-Specific Conditions That Stress CIP Systems
Beverage lines have features that raise the stakes for CIP reliability. Recognizing them helps maintenance teams focus on the right circuits.
- Frequent product changeoversMore cycles mean more wear on valves, seals and actuators, so cycle counts are worth tracking alongside calendar time.
- Sugar, protein and pulp residuesSticky or particulate soils depend on strong mechanical action, which makes spray device and pump condition especially important.
- Filler and bottling line connectionsMany fittings, hoses and valve clusters create gasket and dead leg risk that needs specific inspection points.
- Flavor and color carryoverLeaking diverts and incomplete rinses can show up as taste or appearance issues before they show up in a micro result.
- Heat and chemical cyclingRepeated thermal and chemical exposure ages seals and sensors, so replacement schedules should reflect actual duty.
Building a Tiered PM Calendar Around Production Windows
CIP maintenance is easiest when it is planned around cleaning and changeover windows. The columns below show a typical way to group tasks by rhythm, to be tuned with manufacturer guidance and validation.
- Review recorded parameters against targets
- Note alarms, overrides and deviations
- Check dosing output and chemical supply
- Visual check of spray devices and strainers
- Pump seal and performance checks
- Valve leak chamber and actuator checks
- Sensor calibration and verification
- Spray pattern and coverage testing
- Heat exchanger service and gasket replacement
- Planned replacement of wear items by connection
How Oxmaint Supports CIP Maintenance and Verification
Oxmaint organizes the equipment, tasks and evidence that CIP programs depend on, while quality and sanitation keep ownership of validation decisions.
- Asset hierarchy by circuitGroup pumps, valves, sensors and spray devices under each CIP circuit and production line so history stays connected.
- Preventive maintenance schedulesGenerate recurring inspections, calibrations and replacements from the intervals you set.
- Inspection checklistsCapture measured values, observations and photos on mobile devices at the equipment.
- Corrective work ordersRaise repair work from a failed check and link it to the affected circuit.
- InventoryTrack gaskets, seals, spray devices and diaphragms so planned replacements are not delayed by missing parts.
- Reports and dashboardsShow overdue tasks and completion history for review before audits and validation reviews.
Measures That Reveal CIP Reliability Over Time
Pick a small set and trend them. Set targets from your own validated baseline.
Changes, Repairs and Revalidation: Keeping a Validated Circuit Validated
A CIP circuit is validated for a specific configuration. Repairs, replacements and modifications can quietly change flow paths, spray coverage or sensor behavior, so maintenance work needs a link back to validation.
Maintenance events that deserve a validation check
- Replacement of a spray device with a different model or orientation
- Pump impeller, motor or drive changes that alter flow
- New piping branches, removed sections or relocated valves
- Sensor replacement or relocation at the return line
- Changes to chemical supplier, concentration or dosing equipment
- Controller program or setpoint edits
Good practice for each event
- Describe the change on the work order and identify the circuit affected
- Ask quality or sanitation whether the change requires verification or revalidation
- Run and record a verification cycle with measured values before releasing to production
- Update drawings, procedures and asset records so the change is visible
- Keep the old part's details so future failures can be compared
Utilities that feed CIP and deserve their own checks
- Water supply quality and pressure, because hardness and low pressure change rinse and spray performance.
- Steam or hot water supply to heat exchangers, including traps, strainers and control valves.
- Compressed air supplying valve actuators, since weak air pressure slows or prevents valve movement.
- Drains and neutralization equipment that receive spent cleaning solutions.
- Chemical storage, transfer lines and level instruments feeding the dosing system.
CIP System Maintenance FAQs
How often should CIP spray devices be inspected?
Frequency depends on soil load, water hardness and manufacturer guidance. Start with regular visual checks and add coverage testing, then adjust from findings recorded in Oxmaint.
Why do sensors matter so much for CIP verification?
The controller approves each phase using sensor readings. If a probe drifts, the cycle can pass while real conditions fall short, so calibration and reference checks protect the whole record.
What should a CIP cycle record include?
Measured concentration, temperature, flow and contact time for each phase, plus alarms, overrides and release approval. Pair it with sensor calibration status for the same circuit.
Can maintenance software replace CIP validation?
No. Validation and cleaning limits remain with quality and sanitation. Software schedules maintenance and stores evidence. Book a demo to see how the records connect.
How do I reduce CIP-related downtime?
Plan seal, pump and valve work around changeover windows and keep critical spares in stock. A free trial shows how scheduled work and inventory can be linked.
