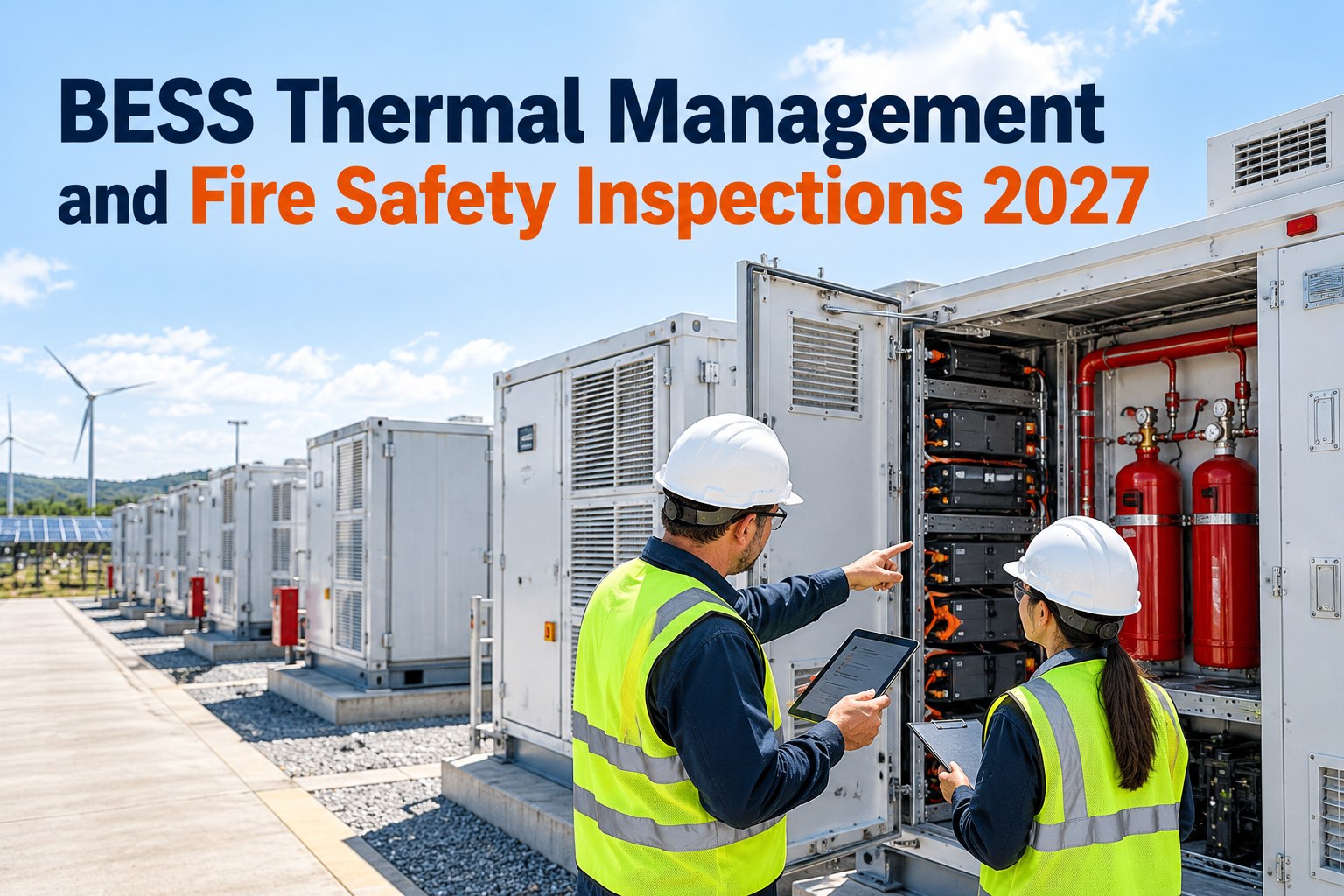

BESS Thermal Management and Fire Safety Inspections 2027

EPRI reported in October 2026 that battery storage failures per deployed gigawatt-hour fell 98% between 2018 and 2025. Better designs did most of that work, but every safety layer still has to be proven working on site, year after year. This guide shows how to inspect cooling, gas detection, suppression and explosion control, and how to track every alarm through to a closed corrective action. OXMAINT AI is the AI-powered maintenance management software that keeps those records together.

Battery Storage · Thermal Management · Fire Safety Inspections

BESS Thermal Management and Fire Safety Inspections 2027

A storage container is protected by four layers, and each layer is only as good as its last proof test. Inspect each one for the way it fails quietly, then log every alarm until the fix is verified. OXMAINT AI, the AI-powered maintenance management software, turns that routine into tracked work.

1Cooling and HVAC

2Gas and smoke detection

3Suppression

4Explosion control

Illustrative layout only. Real designs vary by manufacturer and site.

Start Free — Log Every Alarm Book a Demo — Fire Safety Records

98%

fall in failures per deployed GWh, 2018 to 2025, EPRI

93%

of utility-scale incidents caused no injuries or deaths, EPRI

25% LFL

flammable gas level at which small enclosures need explosion control

Yearly

de-energized system-off inspection, at least, per NFPA 855 guidance

Why Proof Matters More Than Design

EPRI found failure rates now comparable to large oil-filled transformers, and that indoor facilities are overrepresented in failures. It also recommends safety reviews and retrofits of early-vintage systems. A well-designed system still depends on fans that spin, sensors that read and nozzles that are clear. Start free and schedule the proof tests that keep each layer honest.

Four Layers, Four Quiet Failures

Each layer can fail without raising an alarm. The matrix below pairs every layer with the quiet failure to hunt for and the evidence worth logging. It reflects general practice and guidance summarized from insurer and standards sources, so confirm intervals with your manufacturer and local fire authority. Book a demo to load these proof tests into one schedule.

Layer

Its job

Quietly fails when

Evidence to log

1 · Cooling and HVAC

Remove heat before cells run hot

Filters clog, fans slow, setpoints drift

Temperature trend, airflow check, fan test

2 · Gas and smoke detection

Warn early and start exhaust

Sensors drift, are blocked or are bypassed

Calibration and function test dates

3 · Suppression

Cool arrays or smother a fire

Pressure falls, nozzles clog, panel is impaired

Pressure reading, nozzle check, panel status

4 · Explosion control

Vent or suppress built-up gas

Vents are blocked or interlocks stop working

Vent inspection, interlock test result

An Untested Layer Is Only an Assumption.

OXMAINT AI schedules each proof test and flags the ones that are overdue before an inspector does.

Start Free Trial Book a Demo

What Insurers and Codes Point To

Guidance summarized from an insurer's BESS article names combustible gas detection that starts mechanical exhaust, smoke detection for larger units, sprinklers or a clean agent system, and explosion protection designed to NFPA 69 and NFPA 68 above the 25% LFL level. It also advises a hazard mitigation analysis and large-scale fire testing under UL 9540A for new installations. Book a demo to see how these items become inspection tasks.

Triage Every Alarm on a Ladder

An alarm log is only useful if each entry has an owner and an end. This example ladder shows how severity can drive response. Set your real levels with the manufacturer and your fire authority. Start free and map your own levels.

L1 · ADVISORY

Trend or minor deviation. Log it and review at the next shift.

L2 · WARNING

Component out of range. Raise a work order with a named owner today.

L3 · ALARM

Safety layer faulted. Follow the site procedure and isolate per the manufacturer.

L4 · EMERGENCY

Evacuate and call the fire service. Keep records after the event.

Illustrative example, not a standard. Alarm names and thresholds differ by system.

Close the Loop on Every Corrective Action

Most problems repeat because the fix was never proven. Run each alarm through five steps, and keep the entry open until a test shows the layer working again. Book a demo to see an alarm followed from capture to proof.

Capture

Record time, unit and reading.

Triage

Assign a level.

Assign

Name an owner and due date.

Fix

Repair under a work order.

Prove

Test, then close.

BEFORE YOU CLOSE AN ALARM

Cause written in one sentence, not just "reset" Alarm setpoints unchanged, or the change approved and logged Affected device tested after the fix Photo or reading attached as evidence Neighboring units checked for the same fault

What to Ask of Power Plant Maintenance Software

We don't rank brands, because the best CMMS for storage sites is the one your team uses to prove every layer. Test any candidate on these questions. Start free and test them on your own sites.

1Does each alarm link to a work order with an owner?

2Can I schedule proof tests per layer and per unit?

3Does it flag alarms that stay open too long?

4Can I show an inspector or insurer the full history?

SCHEDULE

Proof tests by layer

Cooling, detection, suppression and venting each get their own routine.

TRACK

Alarms to closure

Every alarm becomes a job with an owner and a due date.

SHOW

One evidence trail

Readings, photos and sign-offs stay with the asset.

EXPERT REVIEW · BATTERY SAFETY LENS

Software records safety work; it does not replace the manufacturer's procedures or the fire authority's rules. Never change alarm setpoints to reduce nuisance trips without an engineering review, and keep the reason on file. If a layer is impaired, treat the site as impaired until it is proven again.

Frequently Asked Questions

What should a BESS fire safety inspection cover?

It should cover cooling and HVAC, gas and smoke detection, suppression, explosion control, enclosure condition and signage. Guidance summarized from NFPA 855 also calls for a de-energized system-off inspection at least yearly, so inspect each layer, log evidence and track every finding to closure. Start free and schedule it.

How does thermal management reduce thermal runaway risk?

Cooling and ventilation limit the heat that can build up and lead to thermal runaway, and exhaust ventilation helps clear off-gases from a developing fault. The system only works if fans, filters and temperature readings are checked and trended, so inspect and log them often. Book a demo to track them.

Which gases do BESS detectors look for?

One insurer guide lists combustible gas detection for methane, benzene, ethane, ethylene, hydrogen, hydrogen sulfide and carbon monoxide, starting mechanical exhaust when gas is sensed. Your detector types depend on the manufacturer, so confirm the gases and function test intervals in the design documents. Start free and log tests.

How should alarms and corrective actions be tracked?

Give every alarm a level, an owner, a due date and a work order. Close it only after a test proves the layer works again, and keep the evidence attached. Review open and aging alarms regularly, because a repeated alarm often signals a deeper fault. Book a demo to see the loop.

Do older BESS sites need extra attention?

EPRI recommends safety reviews and retrofits of early-vintage systems to meet current codes, designs and practices, and notes that indoor facilities are overrepresented in failures. Older sites benefit from a fresh hazard review and tighter proof testing, with every result recorded. Start free with your oldest site.
