A motor running at full speed with a broken rotor bar, a failing bearing, or an eccentricity developing inside will look normal to a thermal camera and may not yet show a vibration signature that triggers an alert. But its current waveform will tell the full story — if someone is listening. Motor Current Signature Analysis (MCSA) extracts fault information directly from the electrical current supply to the motor, converting subtle harmonic frequencies in the current spectrum into actionable fault indicators for bearing degradation, broken rotor bars, stator winding asymmetry, and mechanical load eccentricity. For power plant motor reliability teams managing hundreds of motors across cooling, feedwater, fans, and auxiliary systems, MCSA offers the ability to test motors under load with no process interruption, no physical contact, and no need for manual vibration route access. OxMaint Predictive Maintenance AI integrates MCSA findings into corrective work order workflows so that every fault detected translates into a scheduled maintenance action — not a paper report that gets filed. Book a 30-minute demo to see how OxMaint manages motor health programmes across power plant auxiliary systems.
Predictive Maintenance AI · Electrical Monitoring · Motor Reliability
Motor Current Signature Analysis for Power Plant Equipment
Detect broken rotor bars, bearing faults, eccentricity, overloads, and stator winding issues using MCSA — the non-intrusive motor diagnostic method that reveals internal faults without stopping the process or dismounting the machine.
92%
Detection accuracy for broken rotor bar faults before vibration shows measurable change
Zero
Process interruption required — MCSA tests motors live under normal operating load
45 days
Average advance warning of bearing failure detected by MCSA vs reactive replacement
60%
Reduction in unplanned motor failures in programmes combining MCSA with CMMS workflows
What MCSA Detects — The Fault-to-Frequency Map

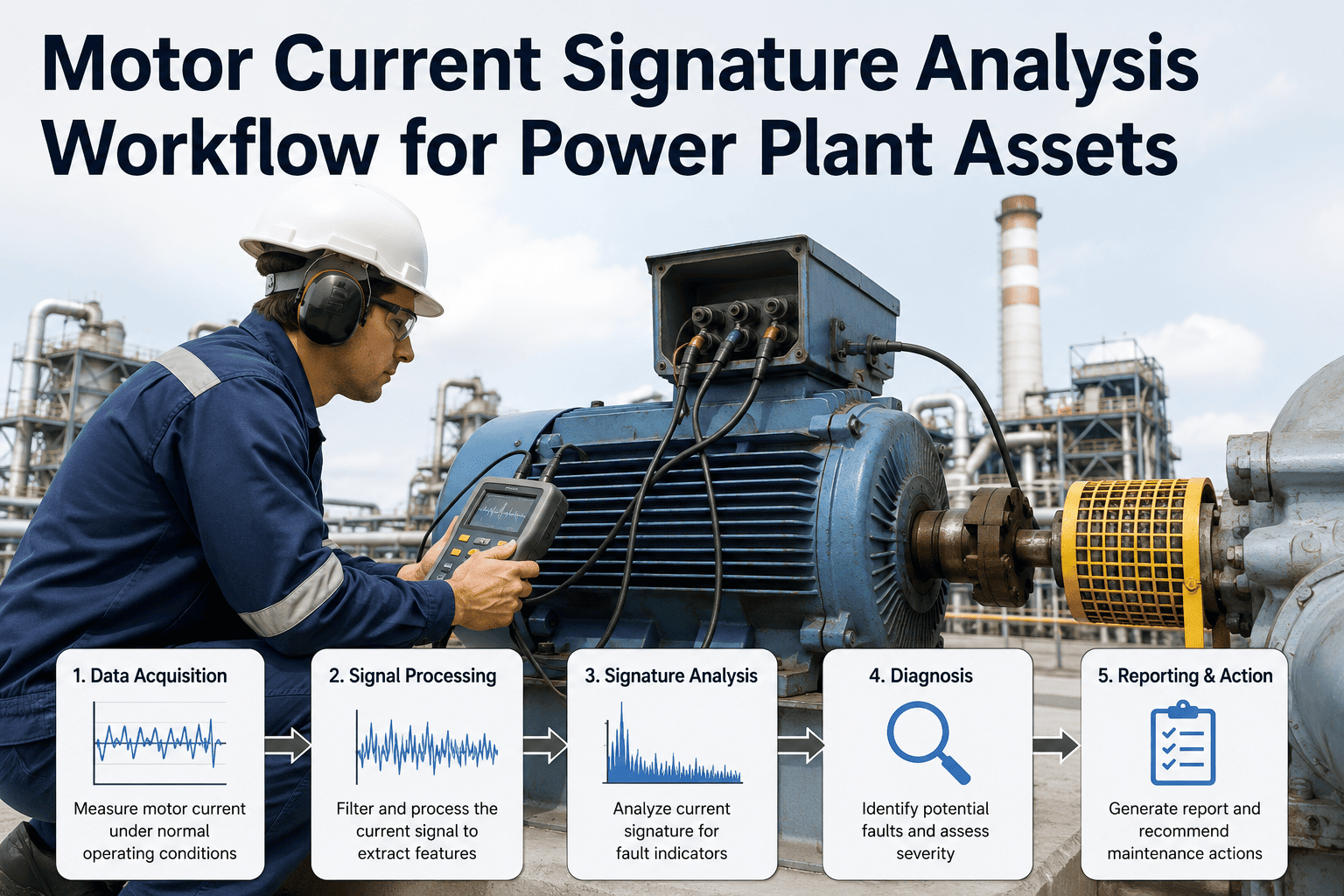

MCSA works by analysing the frequency spectrum of the motor supply current. Each mechanical and electrical fault inside the motor produces characteristic sideband frequencies around the fundamental supply frequency (50 Hz in India). This is the fault-to-frequency map that trained MCSA practitioners use to identify specific conditions.
Sidebands at f₀ ± 2sf₀ where s = slip frequency. Multiple broken bars create higher-order sidebands at f₀ ± 4sf₀, ± 6sf₀
Sideband amplitude relative to fundamental: >-54 dB = monitor; >-40 dB = urgent
Induction motors: BFP drives, ID/FD fan motors, compressor drives
Current sidebands at f₀ ± n·BPFO, f₀ ± n·BPFI, f₀ ± n·BSF (bearing defect frequencies modulate motor current)
Rising sideband amplitude at bearing defect frequencies vs baseline; pattern growth rate indicates severity
All motor-driven equipment; highest sensitivity in large induction motors >75 kW
Static eccentricity: elevated supply harmonics (5th, 7th). Dynamic eccentricity: sidebands at f₀ ± fr where fr = rotational frequency
Amplitude of eccentricity-related components compared to IEEE 1415 reference values for motor frame size
Large induction motors; particularly those with a history of bearing replacement or rotor replacement
Increased 3rd and 5th harmonic components; negative sequence current rise; inter-turn shorts cause localised current asymmetry between phases
Phase current imbalance >2% = investigate; >5% = immediate inspection; thermal imaging correlation recommended
All motors; especially those in high-temperature ambient environments or those with a winding repair history
Low-frequency current modulation at shaft rotation frequency and its harmonics; visible as sidebands around fundamental at ± fr
Comparison to original commissioning baseline; step-change in modulation depth indicates coupling or load mechanical issue
Pump and fan drives; gearbox-connected motor drives; any motor with a flexible coupling
Full-load current above nameplate FLA; power factor reduction; voltage unbalance producing negative sequence current above 1%
FLA >105% of nameplate: de-rate or investigate load. Voltage unbalance >2%: investigate supply quality
All motors; overload is the leading cause of stator insulation degradation in power plant auxiliary motors
MCSA vs Vibration Analysis — Choosing the Right Tool by Fault Type
MCSA and vibration analysis are complementary technologies. Neither replaces the other. Understanding which technology has the advantage for each fault type determines how to allocate diagnostic effort across your motor population — and how to sequence testing when both are available.
Broken Rotor Bar Detection
MCSA is the definitive test for broken rotor bars. Vibration analysis can show rotational frequency modulation, but slip-frequency sidebands in current are the direct electrical signature of rotor cage faults. MCSA gives earlier and more specific detection.
No Physical Access Required
Current clamps attach at the motor control panel — no access to the motor body is required. This is critical for motors in confined spaces, elevated locations, or areas that require hot-work permits to access physically.
Electrical Supply Condition
MCSA simultaneously assesses supply quality (voltage unbalance, harmonic distortion, undervoltage) alongside motor condition. Voltage unbalance above 2% causes a 6× derating of motor thermal capacity — supply quality assessment is a critical ancillary benefit.
Load-Dependent Faults
MCSA tests motors under actual operating load — conditions where load-related faults such as coupling looseness, cavitation-induced torque variation, and driven equipment eccentricity express most clearly in the current spectrum.
Structural Resonance Detection
Vibration analysis identifies structural resonances, foundation looseness, and frame flexibility issues that do not appear in motor current. Base plate cracking and anchor bolt looseness are vibration domain findings that MCSA cannot detect.
Misalignment Severity
Angular and parallel misalignment severity is best quantified by vibration spectrum analysis of the 1× and 2× rotational frequency components. MCSA can suggest coupling torque variation but cannot quantify misalignment geometry.
Bearing Race Defect Localisation
Vibration analysis with envelope detection localises defects to specific bearing components (inner race, outer race, rolling element, cage) with higher specificity than MCSA bearing frequency detection in most cases above 100 kW.
Low-Speed Machinery
For motors driving slow-rotating equipment (below 300 RPM), vibration analysis with low-frequency acceleration or velocity sensors provides better fault resolution than MCSA slip-frequency analysis where slip is very small.
Schedule MCSA Tests. Capture Results. Generate Work Orders. All in One Platform.
OxMaint Predictive Maintenance AI manages your motor testing programme — scheduling MCSA intervals, storing frequency spectrum data against each motor asset, trending fault indicators over time, and generating corrective work orders when severity thresholds are breached.
Power Plant Motor Priority Register — Which Motors to Test First
A power plant may have 300 to 1,000+ motors across all systems. Not every motor warrants monthly MCSA. A risk-based motor priority register allocates diagnostic frequency to motors where failure impact and fault probability are highest.
Priority 1 — Monthly MCSA
Boiler Feed Pump (BFP) drives — production critical, no bypass
Induced Draft (ID) Fan motor — unit load limiter if failed
Forced Draft (FD) Fan motor — combustion air supply
Condenser Cooling Water Pump motors — turbine back-pressure risk
Main Condensate Extraction Pump motors
Priority 2 — Quarterly MCSA
Coal Crusher / Mill motors — fuel supply chain
Ash Handling System pump motors
Air Pre-heater drive motors
Cooling Tower fan motors
DM Plant transfer pumps and chemical dosing drives
Priority 3 — Semi-Annual MCSA
Service water pump motors — redundancy available
Sump and drainage pump motors
Auxiliary cooling system pump motors
Compressed air system motors
Lighting and HVAC system motors
CMMS Integration — Closing the Loop from MCSA Finding to Corrective Action
The most common failure of MCSA programmes in power plants is not poor data quality — it is the gap between finding and action. Test results are emailed, filed, discussed at a meeting, and then a motor fails six weeks later. A CMMS-integrated MCSA workflow eliminates that gap by making every significant finding automatically actionable.
1
MCSA Test Scheduled in CMMS
OxMaint generates the MCSA work order on the correct interval for each motor's priority tier. The technician receives the work order with the motor asset ID, location, last test date, and previous severity trend data — so the test is contextualised before they arrive at the panel.
2
Test Results Captured Against Asset Record
Current spectrum data, fault frequency amplitudes, supply quality measurements, and the technician's severity assessment are entered against the motor's asset record in OxMaint — not in a separate spreadsheet or email thread.
3
Threshold Breach Generates Corrective Work Order
When a fault parameter exceeds the configured threshold — broken rotor bar sideband above -40 dB, voltage unbalance above 2%, bearing frequency amplitude rising trend — OxMaint automatically generates a corrective maintenance work order with the motor asset linked and the finding pre-populated.
4
Corrective Work Order Tracked to Completion
The corrective work order — bearing replacement, winding inspection, rotor bar repair, or supply quality investigation — is tracked through OxMaint with SLA timers appropriate to the fault severity. Completion of the corrective work closes the MCSA finding loop in the asset record.
5
Post-Repair MCSA Verification
After a corrective action, OxMaint schedules a return MCSA test at 2–4 weeks to verify that the fault signature has been eliminated and that the repair was effective. Post-repair baseline data is stored as the new reference for that motor asset's ongoing trending.
Frequently Asked Questions
Can MCSA detect bearing faults as effectively as vibration analysis?
MCSA detects bearing faults by the modulation they cause in motor current — this is effective for early-stage faults in motors above 75 kW under full load. For fault localisation (identifying which specific race or element is defective), vibration envelope analysis has higher specificity. Best practice is to use MCSA for wide-fleet screening and vibration analysis for detailed investigation when MCSA shows a bearing frequency rising trend.
OxMaint tracks both technologies in the same asset record.
How many broken rotor bars can MCSA detect reliably?
MCSA reliably detects a single broken rotor bar in induction motors above 15 kW when the motor is operating above 75% of rated load. Detection sensitivity increases with motor size and load level. Below 50% load, slip frequency becomes very small and rotor bar sideband frequencies can fall within measurement noise — testing at rated load conditions is essential for reliable broken rotor bar diagnosis.
Book a demo to see how MCSA test conditions are captured in OxMaint work orders.
What equipment is needed to perform MCSA on power plant motors?
MCSA requires a current probe (Rogowski coil or current transformer), a data acquisition device capable of sampling at minimum 6,400 Hz, and analysis software that performs Fast Fourier Transform (FFT) on the current waveform to extract the frequency spectrum. Dedicated MCSA instruments from providers like PdMA, SKF, and Megger integrate these components. The test connection is at the motor starter or MCC panel — no motor access is required during testing.
How does MCSA help manage motor overload risk in power plant auxiliary systems?
MCSA continuously measures operating current against nameplate FLA. Motors running above 105% of rated current are operating in a thermal overload condition that degrades stator insulation life at an accelerating rate — each 10°C rise above rated temperature halves insulation life. MCSA programmes identify overloaded motors before insulation failure occurs, enabling load-side investigation (impeller wear, increased system resistance, incorrect impeller trim) that eliminates the overload condition. This is managed as a corrective work order in
OxMaint linked to the motor asset record.
How often should MCSA be performed on critical power plant motors?
Critical motors (BFP, ID/FD fans, main condensate pumps) should be tested monthly — the cost of a forced outage from an undetected motor failure far exceeds the cost of monthly testing. High-criticality motors (coal mills, ash handling, cooling tower fans) warrant quarterly testing. For less critical motors with redundancy, semi-annual testing maintains programme coverage at acceptable cost. Frequency increases immediately after a corrective action until the next stable baseline is established.
